成型材料 Formed material
不銹鋼/鈦合金/鋁合金/模具鋼鈷鉻合金/鎳基合金等 Stainless steel/titanium alloy/aluminum alloy/die steel cobalt chromium alloy/nickel base alloy, etc.
設備主體尺寸(長x寬x高) Main size of equipment (L×W×H)
3790x1520×2460mm (The feed tank height is not included )
成型尺寸(長x寬x高) Molding size (LxWxH)
400×300×400mm
雷射器類型 Laser type Molding size (LxWxH)
IPG fiber laser 500W×4
成型精度/Molding precision
±0.1mm/100mm
成型速度/Molding speed
65-140cm³/h
成型層厚 /Forming thickness
0.02-0.1mm
工作臺重複定位精度Table repeated positioning accuracy
±5μm
惰性氣體消耗(列印過程中) Inert gas consumption (during printing)
1L/min
輔機介面規格Auxiliary engine interface specifications
KF50 Host and material machine, feeder interface
光束品質 Optical quality
M²≤1.1
最大掃描速度Maximum scanning speed
7m/s
預熱溫度Preheating temperature
RT+20°C-200°C
粉末粒徑Particle size of powder
15-53μm
資料格式Data format
STL
設備重量Installation (unit) weight
≈3.5t
環境溫度 Environment temperature
18-25°C
環境濕度Ambient humidity
≤60%
最低氧含量Minimum oxygen content
≤100ppm
氣源要求 Air source requirement
Ar
電源要求 /Power requirement
380VAC/50HZ/15KW

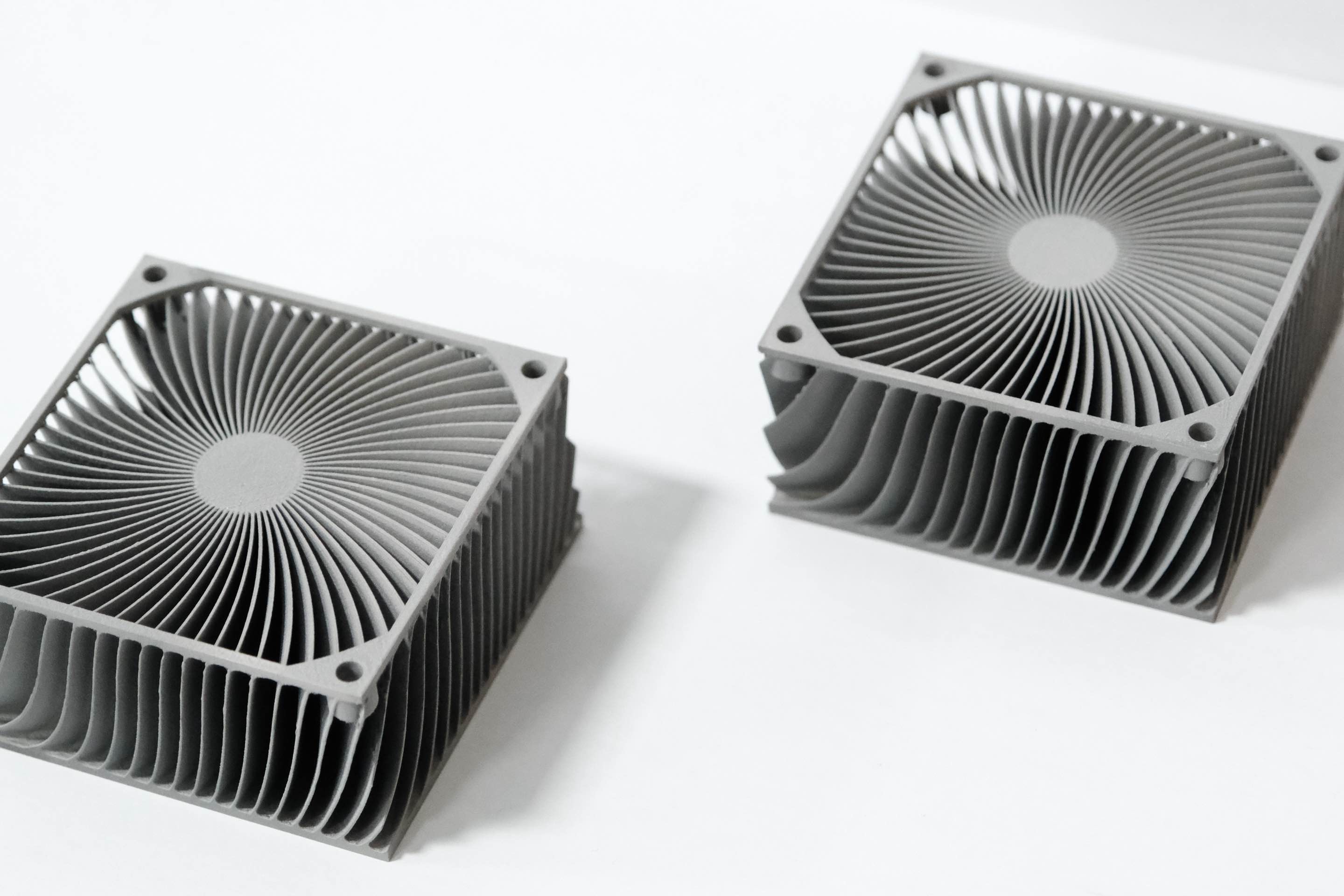

Applications
應用領域
設備優勢
・407×307 幅面,高度 400,採用四鐳射列印,快速成型。
・採用刮刀雙粉槽,實現精准雙向鋪粉,效率可提高40%。
・材料支援:不銹鋼·鋁合金 6013·鈦合金等·可針對客戶需求針對不同 材料進行個性化開發。
・全進口光路系統·進口 IPG 雷射器,振鏡·場鏡,擴束鏡。
・刮刀架多種刮刀適配(陶瓷刮刀·不銹鋼刮刀·橡膠刮刀·毛刷刮刀)。
・配置光柵尺·Z軸精度更高。
・加熱板配置水冷板,精准控制加熱溫度。
・雙氧份儀檢測氧含量,實現雙保險·一個損壞另一個還可保證氧含量監測。
・設備鐳射數量可由客戶需求定制(單光雙光三光\四光)。
・可使用 Magics,漫格等軟體切片,切片格式多樣性·設備適配性·相容性更高。
・低氧含量,氣密性優,耗氣量更小,1升/min。
・參數開源,可即時調整列印參數,滿足多樣化生產需求。
・直流風場佈局·全幅面列印效果更佳,品質更可靠。
・刮刀架優化(雙邊固定),採用螺釘與頂絲配合,刮刀換取更便捷,作更簡單易上手。
Equipment Advantage
- 407×307 format, height 400, using four laser printing, rapid prototyping.
- Double powder trough with scraper to achieve accurate bidirectional powder laying, efficiency can be increased by 40%.
- Material support: stainless steel, aluminum alloy 6013, titanium alloy, etc., can be customized for different materials according to customer needs.
- All imported optical system, imported IPG laser, galvanometer, field mirror, beam expanding mirror.
- Scraper holder Suitable for various scrapers (ceramic scraper, stainless steel scraper, rubber scraper, brush scraper).
- Equipped with raster ruler, Z-axis accuracy is higher.
- The heating plate is equipped with water cooling plate to accurately control the heating temperature.
- Double oxygen meter detects oxygen content to achieve double insurance, one damage to the other can also ensure oxygen content monitoring.
- The number of laser equipment can be customized by customer needs (single light \ double light\ three light \ four light).
- Can use Magics, Mange and other software slicing, slicing format diversity, device adaptation, higher compatibility.
- Low oxygen content, good air tightness, less air consumption, 1 L/min.
- Open source parameters, real-time adjustment of printing parameters to meet diverse production needs.
- Dc air field layout, full format printing effect is better, quality is more reliable.
- The scraper frame is optimized (bilateral fixation), the screw is used to match the top wire, and the scraper is more convenient and easier to use.
從粉末到成品， 一手實現
